MD Series

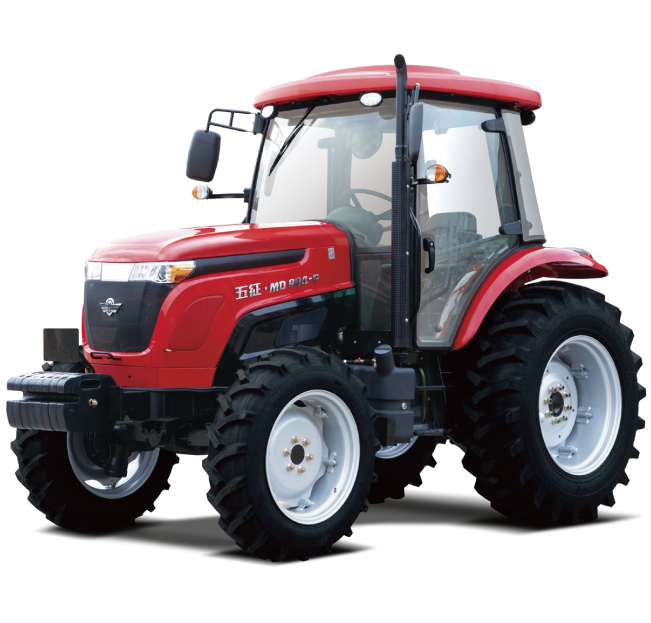

MD series products are brand-new and jointly developed by Wuzheng Group and AVL in Europe, and are the earliest products adopting synchronizer shifting technology with the same 70-100 horsepower in China. These products feature advanced performance and technology, compact structure, easy and comfortable maneuvering, low vibration, low fuel consumption, etc.
-

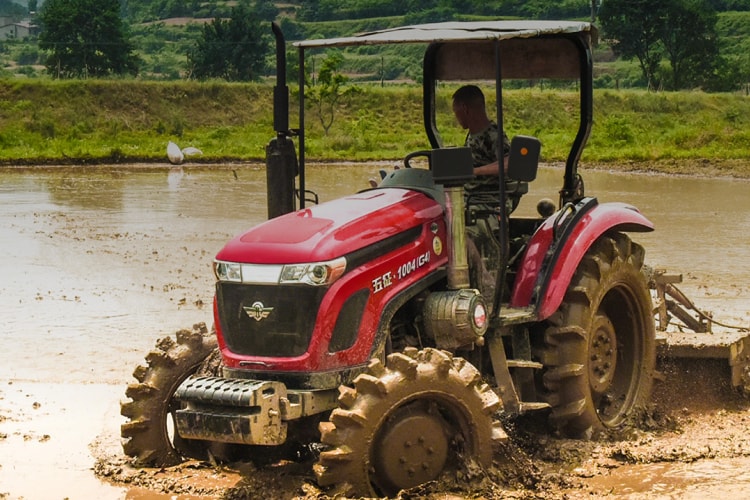

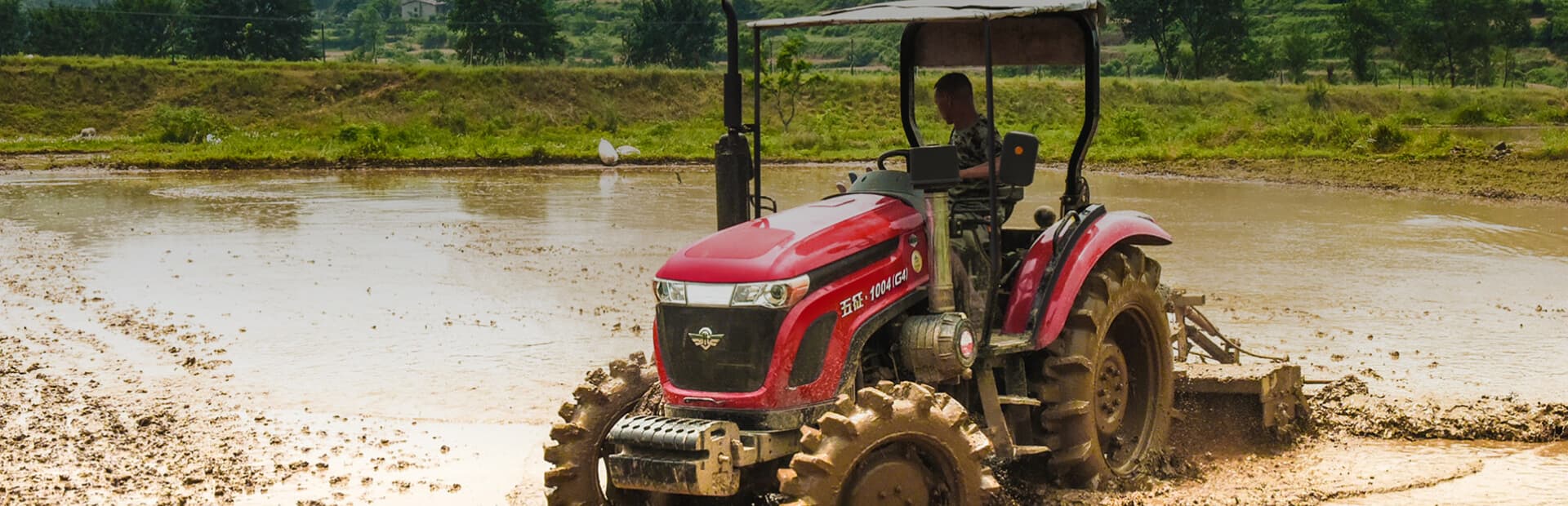

Versatile WorkhorseWhether plowing, leveling, or puddling, its high ground clearance and waterproof design ensure reliable operation, even in muddy conditions, with a top speed of 39 km/h for fast transitions.
-

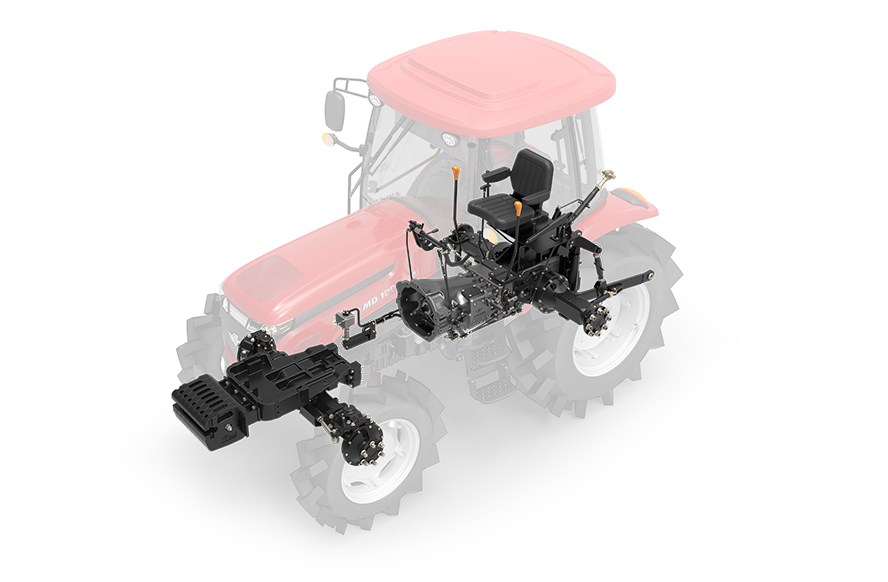

Power and Precision in HarmonyWith 16+8 gear options and an optimized powertrain and chassis, it delivers peak performance at all times.
-

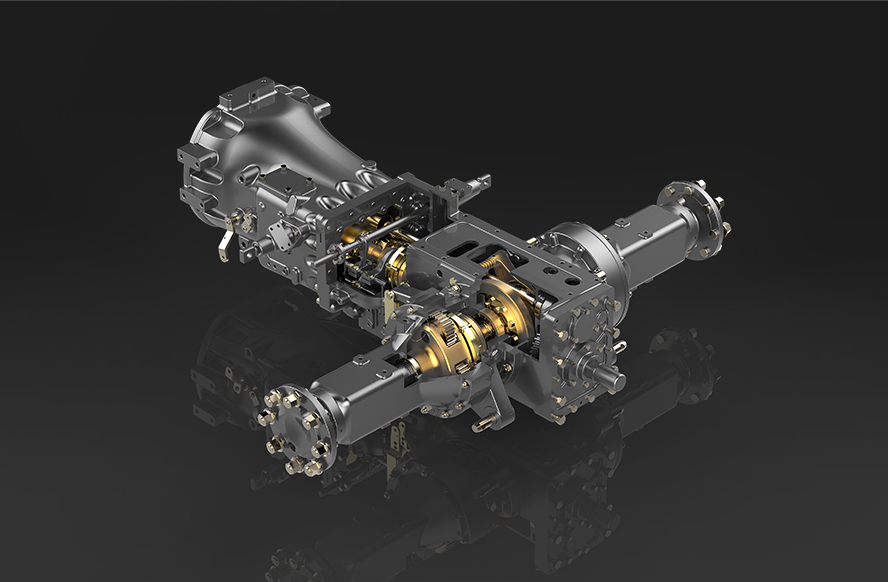

Built to LastDesigned with tubular housings, helical gear drives, and a triple-shaft structure to ensure long-term reliability.
Technical specification
| Item | Unit | Design value |
| Model | / | MD1004 |
| L×W×H | mm | 4120×2000×2775 |
| Wheelbase | mm | 2145 |
| Minimum ground clearance | mm | 470(bottom of front axle) |
| Minimum useable mass | kg | 3300 |
| Maximum lifting force | kN | 15.9 |
| Minimum turning radius | m | 4.2 |
| Engine - Type | / | Direct injection, in-line, liquid-cooled, four-stroke |
| Engine - Model | / | 4G33TC-100G31C/YN38 |
| Rated engine power | kW | 73.5 |
| Rated engine speed | r/min | 2300 |
| Drive system - Transmission type | / | 16+8/16+16/32+32 |
| Drive system - Auxiliary gearbox shifting method | / | Synchronizer gear shift |
| Running System - Tire model (front wheel) | / | 9.5-24/9.5-24(paddy field)/11.2-24 |
| Running System - Tire model (Rear wheel) | / | 16.9-30/14.9-30/16.9-30(paddy field)/14.9-30(paddy field) |
